ALPINE MRP-F600/F32Z24-A (EN/FR/ES). OWNER'S MANUAL. Please read this manual to maximize your enjoyment of the outstanding. ALPINE MRP-F600/F32Z24-A (EN/FR/ES). OWNER'S MANUAL. Please read this manual to maximize your enjoyment of the outstanding performance and feature capabilities of the equipment, then retain the manual for future reference. MODE D'EMPLOI. Wiring diagram for Alpine MRP-F300 I want to connect 1 subwoofer and 2 full range speakers to the amp. What are the - Alpine MRP-F300 Car Audio Amplifier question. ALPINE MRP-F600/F32Z24-A (EN/FR/ES). OWNER'S MANUAL. Please read this manual to maximize your enjoyment of the outstanding performance and feature capabilities of the equipment, then retain the manual for future reference. View and Download Alpine MRP-F600 owner's manual online. 4 CHANNEL POWER AMPLIFIER. MRP-F600 Amplifier pdf manual download. Also for: Mrp-f300. Now all I can say is WOW! I have it's older brother (MRP-F300) installed in my wife's car and that amp is great (I have it running all 4 of her speakers and the sub-woofer) and her system sounds awesome! The MRV-F300 amp is almost 1/2 the size of the MRP-F300 but I thinks it's actually a bit more powerful.

V-Power amplifiers deliver the sound quality that made Alpine famous. Highly efficient power supplies housed in sleek black casings guarantee that these amps stand out in performance and appearance. The thermal management system dissipates heat and saves power, so your V-Power amp will run reliably for years to come.

V-Power amplifiers deliver the sound quality that made Alpine famous. Highly efficient power supplies housed in sleek black casings guarantee that these amps stand out in performance and appearance. The thermal management system dissipates heat and saves power, so your V-Power amp will run reliably for years to come.

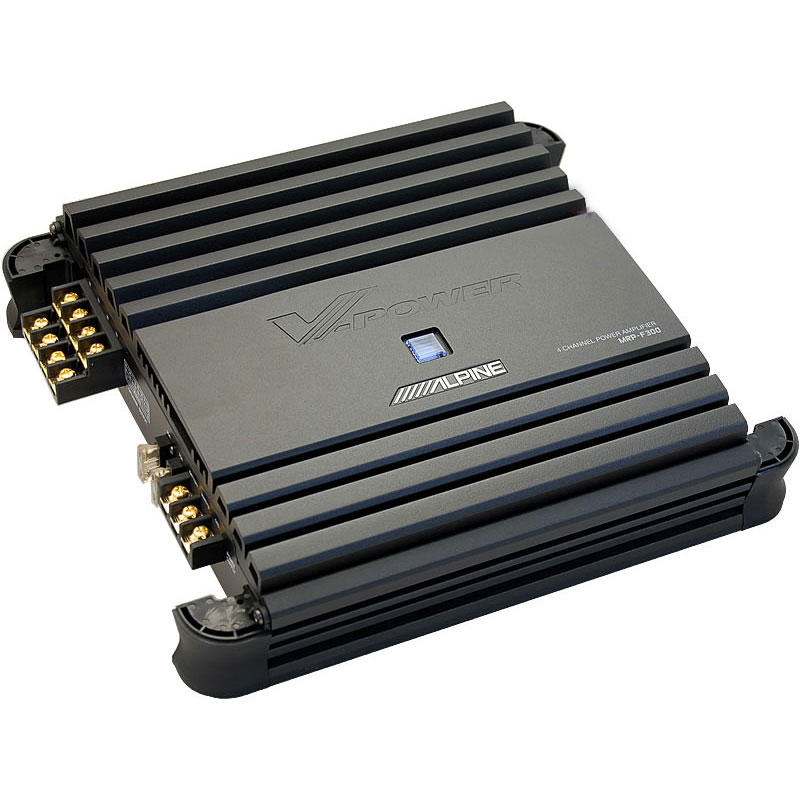

The MRP-F300 4-channel amplifier sends 50 watts RMS to each of your front and rear speakers, or switches to 2-channel mode to power a pair of subwoofers. You can also switch to 3-channel mode, then power a subwoofer with 150 watts RMS while the other two channels power a pair of full-range speakers.

High- and low-pass filters put you in command of the frequencies that reach your speakers, while the bass boost is armed with plenty of low-end punch. Preamp- and speaker-level inputs allow you to connect this amp in almost any vehicle. Let a V-Power amplifier transform the sound of your car's audio system.

READ LESS

Product highlights:

  • 4-channel car amplifier
  • 50 watts RMS x 4 at 4 ohms (75 watts RMS x 4 at 2 ohms)
  • 150 watts RMS x 2 bridged output at 4 ohms (4-ohm stable in bridged mode)
  • 2-, 3-, or 4-channel output
  • variable high-pass/low-pass filters (50-400 Hz, 12 dB/octave)
  • selectable bass boost (12 dB at 50 Hz)
  • subsonic filter (15 Hz, 18 dB/octave for channels 3 & 4)
  • MOSFET power supply
  • STAR Topology (minimizes internal noise and prevents ground interference)
  • speaker- and preamp-level inputs
  • gold-plated screw terminals
  • fuse rating: 25A x 2
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 10-11/16'W x 2-7/16'H x 9-9/16'D
  • warranty: 1 year
  • MFR # MRP-F300

What's in the box:

  • Four channel amplifier
  • Two 25 amp fuses (installed)
  • 7' Speaker-level input harness (8-pin Molex plug on one end and bare wires on the other)
  • 2 Terminal covers
  • 4 Self-tapping hex-head screws (M4 x 20mm)
  • 4 Machine screws for securing terminal covers (M3 x 12mm)
  • Owner's Manual (English/French/Spanish)
  • Customer Care Registration card

Featured video:

Alpine Mrp-f300 Manual

REVIEWS
Alpine mrp-f300 manual

Loading reviews...

Alpine MRP-F300 reviews

Average review:

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Thank you for submitting your review!


It may take up to a week for your review to appear.

0'>

Filter by rating

0'>

Customer photos

0'>
Verified employee purchase
Mrp F300 Manual
Crutchfield response

Features & specs

Performance
RMS Power Output (Watts x Channels) 50 x 4
Peak Power Output (Watts x Channels) N/A
Power at 2 Ohms (Watts x Channels) 75 x 4
Bridged Power (Watts x Channels) 150 x 2
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2
Best Frequency Response 20-20k Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 80 dB
Input Voltage 14.4v
Features
Amplifier Class AB
Low-Pass Crossover Frequency 50-400 Hz
Low-Pass Slope (dB/octave) 12 dB/oct
High-Pass Crossover Frequency 50-400 Hz
High-Pass Slope (dB/octave) 12 dB/oct
Bass Boost +12 dB
Bass Boost Frequency 50 Hz
Fan Cooled No
Fuse Rating 50
Speaker Level Inputs Harness
Preamp Outputs 1 pair
Width (inches) 10-11/16
Height (inches) 2-7/16
Depth (inches) 9-9/16
Parts Warranty 1 Year
Labor Warranty 1 Year

Loading accessories...

4 questions already asked

Where is the best place to mount the amp in 2005 tundra limited. I have alpine mvr-f300?
[ David Apr 09, 2014 ]
I put my unit in the trunk, and made a custom mount to mount it elevated from the trunk floor.
Usailly in a truck its behind the back seat against the rear wall which requires removing the seat.
I mounted mine under the seat but it was a bench seat
I have a 1998 Chevy Tahoe that has 3 pairs of speakers: front, rear passenger and cargo area. I want to power all speakers and also use the SUB out from the amp to power my power tube. What would be the best speaker wiring to take advantage of all the speakers? Would i tie the front and rear passenger together or the rear passenger and cargo area together?
[ sfrank Mar 11, 2014 ]
I forwarded your question to an Advisor and they responded with the following: That will depend on the power handling of the speakers, but in this setup I would suggest wiring the rear speakers in series off one another. If you would like to discuss further you can contact an Advisor directly by phone (1-800-324-9695) or online chat.
Ive heard this amp can be run in 3 channel mode but I havent found any description on how to do that? If anyone can expand on this it would be most appreciative. Note I am installing this amp for the first time. Tks, Chris
[ Chris Dec 17, 2013 ]
Chris L ...Although I used this amp in 4 channel mode, you can use it for 3 channels. I sold the vehicle along with all the manuals so, I am going off memory here and countless other installs over the years.I'm going to assume you will be using this amp to power a pair of full range or component speakers and a subIf that is the correct scenario you will hook your full range/ component speaker pair to channels 1&2. Make sure you wire them up as the diagram states on the end of the amp. Meaning ...left speaker +- to left speaker and right speaker +- to the right speaker. Channels 3 &4 will be combined to make your 3rd channel. This is called bridging which essentially doubles the power output going to your sub. There should be a diagram on the side of the amp showing you how to make these 'bridging' connections. Basically you will be taking the positive and negative speaker wire from your sub and hooking one of the wires to the positive or negative terminal on channel 3 and the other wire to the negative or positive terminal on channel 4. Always try to hook negative to negative and positive to positive.Hope this helps
Couldn't you simply bridge 3 & 4 together?
Yes it can. 2/3/4 channel capability. 2 channels bridged to one mono channel, the other 2 channels run stereo. Built in filters for subwoofer on mono channel. High pass filter for the stereo channels. No problem.
I just purchased a JVC kW-R800BT receiver. How difficult is it to add this amp to it before I install? I would like to use my points towards this purchase.Thank you,Glen

Alpine Mrp-f300 Manual

[ Glen Dec 09, 2013 ]
Extremely easy. This amp was one of the easiest I have installed.
Glen don't know, ask crutch field they're very helpful.

Alpine Amp Mrp-f300 Manual

I had a professional install it. I installed the head unit but when I got the amp I went to a pro and I'm glad I did. He replaced the stock wiring with that I ordered from these guys and did a wonderful job. I didn't know where the wiring channels were. He had to use more than one because of the Guage of the wire. Also ran me a cable in case I ever installed a sub woofer. He also set up the crossover and equipment on the amp for me. Once it's in hard to get to. He also had to Remo e the door panels the back seat and the dash to install in my truck. It was the best 175 dollars I spent. Would have taken me a day or two And I would have had to have someone help. When I put in my Kenwood I also got 4 infinity speakers. They are great. You will be very happy with the amp. It sounds better than anything I have ever heard and I have seen some very good ones. Definitely will need good speakers. That amp will blow any stock speaker out including the bose that come stock. Very clean and clear sound all the way to max volume. You can try the install yourself, I did install the head unit and the speakers but I used factory wiring. With this amp you need heavy Guage to get all it capable of and it's capable of very good things. Go with the pro. You got one of the best there is get everything out of it and you will be as impressed as I was. Mind blowing.
